SIMRAD AIS/VHF SPLITTER
Description
NSPL-500 AIS/VHF antenna splitter - Enables use of one VHF antenna on the vessel for both VHF and AIS. Note - When AIS transmits, VHF RX TX is haulted for the AIS TX time.
What’s in the box?
Product manual: The product manual is this document and should be read thoroughly prior to any attempt to install or use the NSPL-500.
VHF radio connection cable. This cable is used to connect a VHF radio to the NSPL-500. The cable has PL259 connectors at either end and requires a SO239 connector on the VHF radio. If your VHF radio does not have a SO239 connector please contact your dealer for details of suitable adaptors.
AIS transceiver connection cable: This cable is used to connect a Class-B AIS transceiver, such as the NAIS-500 to the NSPL-500. The cable has a BNC connector at one end (for connection to the NSPL-500) and a PL259 connection at the opposite end (for connection to the AIS transceiver).

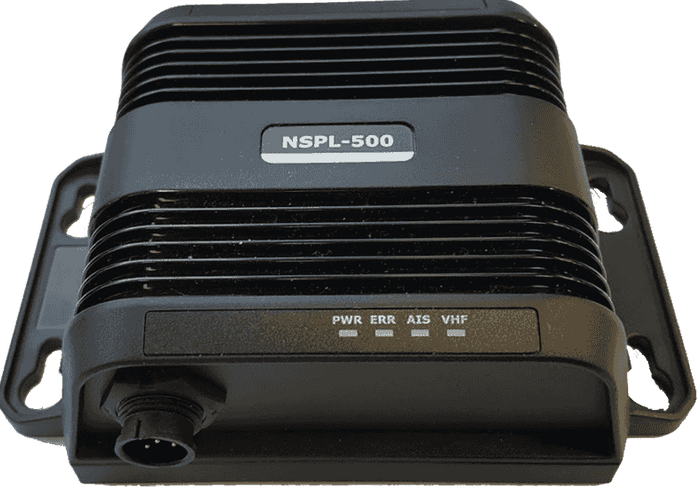

NSPL-500 AIS/VHF antenna splitter unit. The NSPL-500 has a number of indicators which provide information to the user about the status of the NSPL-500.
Power and FM cable. The power and FM cable connects to the NSPL-500 and enables connection to power and an FM radio antenna input.
Save the hassle of installing a costly second antenna and use your existing single antenna with VHF/AIS/FM, by enlisting the lightweight, compact NSPL 500 antenna splitter.
When combined with the NAIS 500 AIS system, you can see and be seen on the water, whether tackling busy shipping lanes or crowded ports.
Key Features
- Plug and Play
- FM connector for SonicHub™ 2 or any compatible stereo FM unit.
- Lightweight Unit - Just 260 grams.
- Waterproof IPX7 standard.
Low Power Consumption
Ideal for sailboats or power boats, the NSPL 500 features a low average power consumption of less than 150 mA at 12 V DC.
Wide Voltage Range
The NSPL 500 is suitable for 12 or 24 V DC systems with a wide range of supported input voltages from 9.6 V to 31.2 V DC.
High Performance with Low Loss
The NSPL 500’s high-performance design means no insertion loss on AIS and VHF receive, and low insertion loss on AIS and VHF transmit.
| Dimensions | 152 x 98 x 52 mm (L x W x H) |
| Weight | 260 g |
| Voltage supply | DC 9.6 to 31.2 V |
| Current consumption | <150 mA at 12 VDC |
| VHF and AIS frequency range | 156 MHz to 162 MHz |
| Insertion loss AIS & VHF receive paths 0 dB | 0 dB |
| Insertion loss AIS & VHF transmit paths | Typical 1 dB |
| Max input power, AIS port | 12.5 W |
| Max input power, VHF port | 25 W |
| Min input power, VHF port | 0.5 W |
| AIS, VHF and Antenna port impedance | 50 Ohms |
| FM port impedance | 75 Ohms |
| Operating temperature | -15ºC to +55ºC |
| Ingress protection | IP67 |
