WS310 WIND PACK, 20M CABLE, INTERFACE

SKU:
000-14382-001
Price:
$989.00 inc. GST

Description

A new range of high precision B&G wind sensors, designed for cruising and club racing sailors. An evolution of B&G’s previous sensors, developed through hours of iterative testing to provide the best solution for sailing wind sensors.

Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS300 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.

Angle accuracy +/- 0.5 Degree
Speed accuracy < 0.2 kt

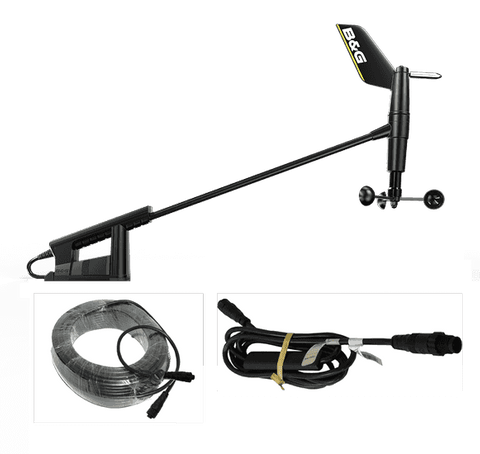

A high precision wired wind sensor, designed for cruising and club racing sailors. The B&G WS310 wind sensor offers high performance data accuracy, with improved aerodynamics suitable for all yachts. Pack includes 20m mast cable and Interface.

High Performance

Designing to provide highly accurate wind data in all conditions at all points of sail and heel.

Reliability

Thousands of hours of real-life testing have proved this instrument to be exceptional in all conditions. Providing fast and accurate data at all times.

Key Selling Points

The WS310 wind sensor has been designed to provide a highly accurate cabled sensor, suitable for a wide range of yachts.

  • High accuracy* for the best instrument and autopilot performance. High performance aerodynamic design is the result of over 500 individual wind tunnel tests
  • Wide compatibility – connect via interface to a NMEA 2000® network, or direct to a NMEA 0183 input
  • Straight-forward installation. Single cable, cable runs of up to 80m

* +/- 0.5 degree angle accuracy, +/- 0.2kt wind speed accuracy across working rang

WS310

Weight 0.30 kg (0.66 lbs)
Cable length 20, 35, 50 & 80 meters (66, 115, 164 & 262 ft)
Waterproof IPx6 & IPx7
Operating temperature -25°C to 65°C
Power usage 15 mA at 12 V DC
Wind speed resolution 0.05 m/sec (0.1 Knots)
Wind speed accuracy +/-0.1m/sec (0.2 Knots) from 1 - 40 m/sec (2-80 Knots)
Wind speed range 0.25 - 50 m/sec (0.5-97 Knots)
Wind angle resolution 0.1°
Wind angle accuracy +/- 0.5°
Data output NMEA0183 ‘MWV’ sentence at 10Hz
