XSONIC BRONZE HDI XDCR 0 DEG

SKU:
000-13905-001
Price:
$719.00 inc. GST

Description

Introducing NEW Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducers. Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature.

Available in 0°12°20°tilt angles.

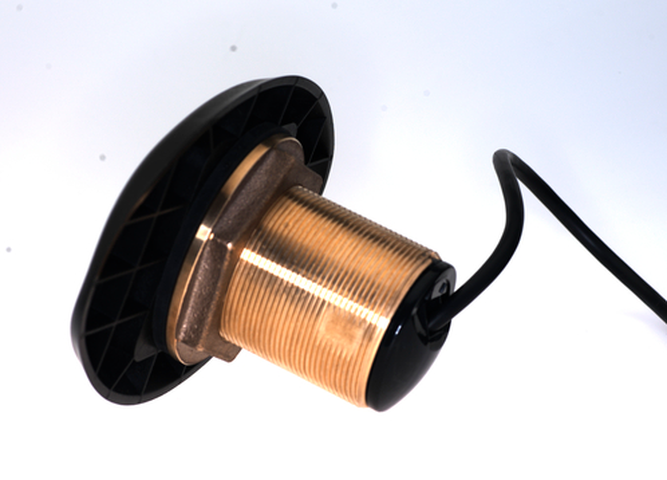

Hybrid Dual Imaging™ (HDI) Bronze Through-Hull transducer.

  • 50/200kHz Traditional
  • 455/800kHz DownScan Imaging
  • Temperature sensor
  • 0° tilt for 0-7° Hullrise
  • 12° tilt for 8-15° Hullrise
  • 20° tilt for 16-24° Hullrise
  • 10m (33ft) cable

Performance

Beam Width at -3dB

  • 50kHz 45°
  • 200kHz 11°
  • 455kHz
  • Fore to aft 2.8°
  • Port to starboard 56°
  • 800kHz
  • Fore to aft 1.6°
  • Port to starboard 32°

Connection

The transducer comes with a 10m (33ft) cable and black 9-pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device (HDI 50/200).
