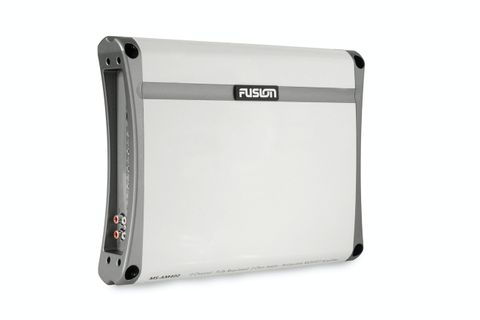

MARINE AMPLIFIER - 500W 4 CHANNEL
Description
The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before. With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around your vessel.
Features:
500W peak power output to power up to eight speakers.
Class-AB amplifier – power efficient with less cross-over distortion.
Conformal coated PCBs – water resistant protection from salt air and moisture.
FUTRANZ heat sink technology – transfers heat more efficiently and provides more thermal stability with maximum component reliability.
F.R.A.T (Fusion Regulated Amplifier Technology) – provides enormous power output at low voltage.
F.I.S.T (Fusion Intercooled Semi-Conductor Technology) – clamps down internal power switching to rapidly remove heat from all associated semi-conductors.
1 year limited Consumer Warranty.
The Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system.
QUALITY AUDIO AMPLIFICATION
- Purpose-built for the marine environment, the AM Series marine amplifiers are designed to enhance your on-water listening experience with quality audio amplification.
- Class-AB amplifier design delivers efficiency with reduced distortion.
- Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
- Conformal coated PCBs provide extra protection from the marine elements.
- Heat sink provides greater dissipation of heat for enhanced component reliability.
- The amplifiers are available in 2-channel and 4-channel configurations.
| Physical dimensions (Length x Width x Height) | 2 Channel: 11.65″ x 9.02″ x 2.09″ (296 x 229 x 53 mm) |
| 4 Channel: 14.41″ x 9.02″ x 2.09″ (366 x 229 x 53 mm) | |
| Amplifier class | Class-AB |
| Peak power (Watts) | 2 Channel: 400 W |
| /td> | 4 Channel: 500 W |
| Total rated power output - 4 Ohm (Watts) | 2 Channel: 65 W RMS x 2 @ 14.4 V input - 4 Ohm < 1% THD |
| 4 Channel: 65 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD | |
| Total rated power output - 2 Ohm (Watts) | 2 Channel: 100 W RMS x 2 @ 14.4 V input - 2 Ohm < 1% THD |
| 4 Channel: 100 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD | |
| Total rated power output - 4 Ohm Bridged (Watts) | 2 Channel: 200 W RMS x 1 @ 14.4 V input - 4 Ohm Bridged < 1% THD |
| 4 Channel: 200 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD | |
| Frequency response | 5 Hz - 38 kHz (-3dB, dB @ 4 Ohm rated power) |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 5k Ohm nominal |
| High-pass/low-pass full range filter | Yes (user selectable) |
| HP variable crossover frequency | 40 Hz - 600 Hz |
| LP variable crossover frequency | 40 Hz - 160 Hz |
| Warranty | 1 year |
