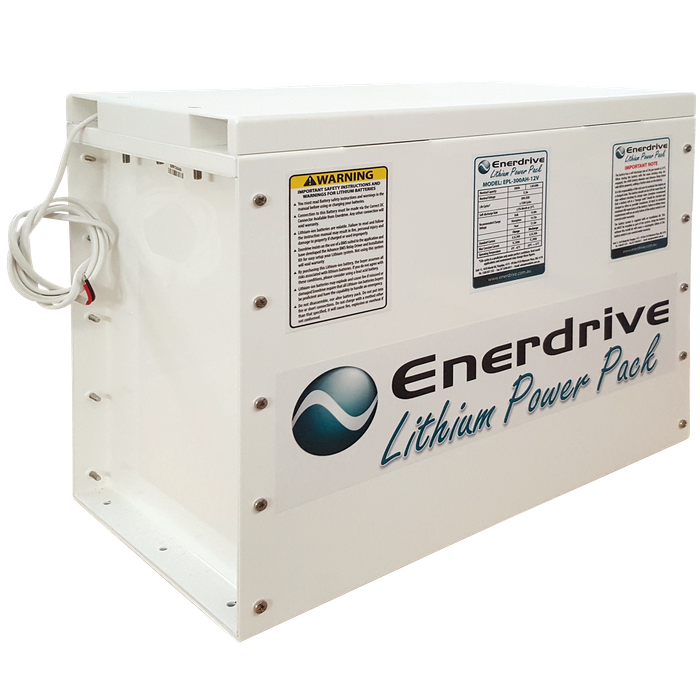

COMPACT 300A/12V LITHIUM BATTERY + ABS
Description
Lithium Ion batteries have a high energy density and are perfect for cyclic applications. They offer savings of up to 70% in volume and weight compared to traditional lead-acid batteries. Lithium Ion batteries offer ultra-fast charging and discharging, high efficiency and three times as many charging cycles (>1500 full cycles) compared to traditional lead acid batteries.
Enerdrive’s Pro Series Lithium-iron-phosphate (LiFePO4) is the safest of the mainstream li-ion battery types. The nominal voltage of each cell is 3,2V. A 12,8V Enerdrive battery therefore consists of 4 cells connected in series.
All lithium Ion batteries require a battery management system (BMS). There is no way around this. There are numerous examples of catastrophic failures where no BMS has been used.
The Enerdrive Pro Series Lithium battery packs incorporate Active Cell Balancing across the range. The balancing method used is Dynamic Energy Transfer. This allows for automatic balancing of the cells during charging, discharging and storage. Any cells with high voltage density will transfer energy to the lower cells in the pack. This method of cell balancing utilises the energy within the battery pack to balance the cells unlike passive balancing systems which bleed this excess energy off as heat to keep the battery balanced at the top end of the charging cycle, wasting energy already stored within the battery.
The Enerdrive Active Balancing System also incorporates individual cell “Hi -Voltage & Low-Voltage” disconnect feature to interface with the Enerdrive Advanced BMS Driver, switching (off/on) of charging sources & consumer loads. Running Active Cell Balancing allows Enerdrive to parallel and series connect multiple batteries within the system. This offers 12v, 24v, 36v &,48v systems with up to the possibility of 1500Ah+ capacity.
The installation kit incorporates the Enerdrive Advanced BMS Rely Driver, ePRO monitor, Main DC Fuse and a load disconnect latching relay. This kit is connected to the battery and designed to work hand in hand with the batteries Active Balancing System for controlling charging and discharging sources for ultimate protection of your investment.
Many companies will just sell you the battery and if lucky, you will get a BMS incorporated. They neglect to tell you that disconnecting loads and charging sources at the critical times requires more equipment to be installed to manage these operations.
This battery is sold as a complete system installation only. Please contact Advance Trident for more information.
Features
Lithium Ion batteries have a high energy density and are perfect for cyclic applications. They offer savings of up to 70% in volume and weight compared to traditional lead-acid batteries. Lithium Ion batteries offer ultra-fast charging and discharging, high efficiency and three times as many charging cycles (>1500 full cycles) compared to traditional lead acid batteries.
Enerdrive’s Pro Series Lithium-iron-phosphate (LiFePO4) is the safest of the mainstream li-ion battery types. The nominal voltage of each cell is 3,2V. A 12,8V Enerdrive battery therefore consists of 4 cells connected in series.
All lithium Ion batteries require a battery management system (BMS). There is no way around this. There are numerous examples of catastrophic failures where no BMS has been used.
The Enerdrive Pro Series Lithium battery packs incorporate Active Cell Balancing across the range. The balancing method used is Dynamic Energy Transfer. This allows for automatic balancing of the cells during charging, discharging and storage. Any cells with high voltage density will transfer energy to the lower cells in the pack. This method of cell balancing utilises the energy within the battery pack to balance the cells unlike passive balancing systems which bleed this excess energy off as heat to keep the battery balanced at the top end of the charging cycle, wasting energy already stored within the battery.
The Enerdrive Active Balancing System also incorporates individual cell “Hi -Voltage & Low-Voltage” disconnect feature to interface with the Enerdrive Advanced BMS Driver, switching (off/on) of charging sources & consumer loads. Running Active Cell Balancing allows Enerdrive to parallel and series connect multiple batteries within the system. This offers 12v, 24v, 36v &,48v systems with up to the possibility of 1500Ah+ capacity.
The installation kit incorporates the Enerdrive Advanced BMS Rely Driver, ePRO monitor, Main DC Fuse and a load disconnect latching relay. This kit is connected to the battery and designed to work hand in hand with the batteries Active Balancing System for controlling charging and discharging sources for ultimate protection of your investment.
Many companies will just sell you the battery and if lucky, you will get a BMS incorporated. They neglect to tell you that disconnecting loads and charging sources at the critical times requires more equipment to be installed to manage these operations.
This battery is sold as a complete system installation only. Please contact Advance trident for more information.
Specifications
EPL-300AH-12V-COMPACT
| Model | EPL-300AH-12V-COMPACT | |
|---|---|---|
| Nominal Capacity | 300Ah | 3840Wh |
| Nominal Voltage | 12.8V | |
| Life Cycles* | 80% DOD | ≥1500 Cycles |
| Self-discharge Rate | ≤3% | |
| Weight | 50kg Approx. | |
| Dimensions L x W x H | 412 x 219x 343mm (Download PDF) | |
| Charge | Discharge | |
| Mode: CC & CV | ||
| Max & Min Voltage: | 15V | 11.5V |
| Standard Current | 0.3C,90A | 0.3C,90A |
| Max Constant Current | 1C,300A | 1C,300A |
| Operating Temperature | 0°C-+45°C | -20°C-+60°C |
| Max Charge Voltage | 14.20V | |
| Float Voltage | 13.50V | |
Active Cell Balancing & Protection Info
| Balancer Type | Active |
|---|---|
| Balancing Method | Dynamic Energy Transfer |
| Battery Capacity Limited | 50Ah-1000Ah LifePo4 Lithium Battery |
| Working Voltage Range | 2.0v – 4.2v |
| Low – High Cell Voltage Protection | 2.8v – 3.8v |
| Battery Cell Count Limit | 2 – unlimited |
| Power Consumption | <50mW (<0.004A) |
| Acceptable Constant Balance Current | 6A |
| Peak Balance Current | 10A |
| Voltage Variance Between Cells | <100mV |
| Working Efficiency when Balance Current is 1A | >94% |
| Working Temperature | -40 – + 80c |
| Storage Temperature | -40 – +100c |
Note: Specifications subject to change without notice.
International Patent applies to Active Cell Balancer
