ENERDRIVE BMS BOARD 24V W/ SIMARINE

SKU:
EPL-BMS-24V-BT-SIMARINE
POA

Description

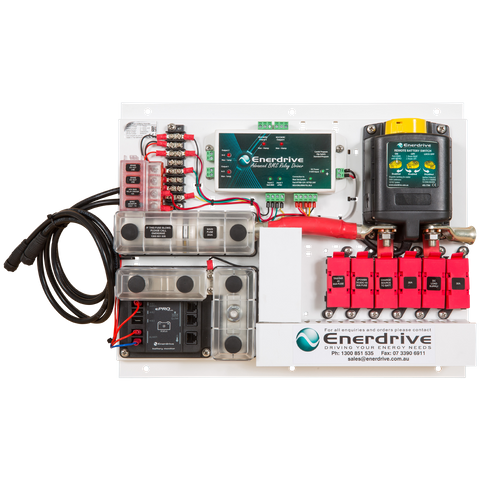

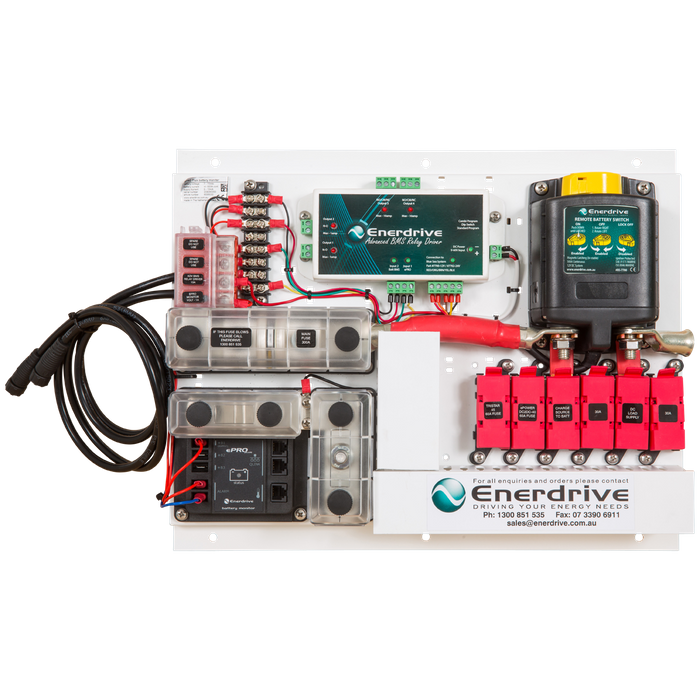

The Enerdrive BMS Connection Board is the HUB of your Lithium Power System.

Majority of the components are Pre-Installed on a Zinc powder coated plate for easy installation. The installation kit includes the follow:

1 x Mounting Plate.
1 x ePRO Battery Monitor Shunt.
1 x ePRO Battery Monitor for remote installation.
7m x 8core Twisted Pair battery monitor cable.
1 x Main battery Class T Fuse Holder and Fuse to suit application.
1 x 4 position Fuse Holder for BMS & Battery Monitor connection.
3 x Input fuse & holders for charger connection—Solar, DC2DC and AC Charger.
1 x Main 500Amp Latching Relay for load disconnection.
1 x Enerdrive Advanced BMS Relay Driver—including Charger interface leads to suit.
Up to 1.5m x ENC-95mm² - Negative Battery cable from Battery to Plate.
Up to 1.5m x ENC-95mm² -Positive Battery cable from Battery to Plate.
