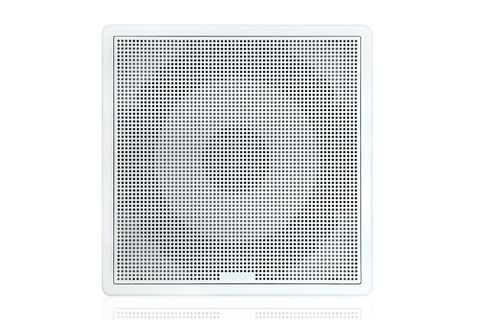

FM SERIES SUBWOOFER (WHITE)

SKU:
010-02301-10
Price:
$359.00 inc. GST

Description

Engineered for high-quality audio reproduction with innovative design aesthetics, Fusion's new FM Series flush mount marine subwoofers are designed to deliver high-quality bass to your vessel in a sleek and minimalistic form factor to meet the latest boat design trends.

Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series subwoofers are designed to be flush mounted with a mounting flange no thicker than 3mm [1/8"] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine™ design and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series subwoofers are built to last on board season after season.

CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS

  • The Fusion FM Series subwoofers are designed to enhance your on-water audio listening experience with quality bass, in a sleek and minimalistic aesthetic.
  • Innovative flush-mount design for a sleek and minimalistic finish.
  • Low profile, near flat installation with a mounting profile of just 3 mm.
  • Create a 2.1 audio zone to reduce system cost and simplify installation.
  • With an increase in real power, the voice coil provides a high-quality sound experience.
  • The subwoofers are available in 10-inch designs with a round or square form factor.
  • Engineered to last season after season, the subwoofers include a 3-year warranty.

General


Physical dimensions Round (Diameter x Depth): 11.18" x 5.49" (284 x 139.5 mm)
Square (WxHxD): 11.18" x 11.18" x 5.49" (284 x 284 x 139.5 mm)
Water and dust rating IP65
Speaker size 10"
Peak power (Watts) 400 W
RMS power (Watts) 120 W
Sensitivity (1 W/1 m) 87 dB
Magnetic structure 41 oz
Frequency response 30 Hz - 2 kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 40 - 300 W
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1.5"
Cone material Polypropylene cone with rubber surround
Compass-safe distance 150" (381 cm)
Warranty 3 years

Mounting dimensions


Mounting diameter clearance Round: 10.59" (269 mm)
Square: 10.59" x 10.59" (269 x 269 mm)
Mounting depth clearance 5.51" (140 mm)

Optimum enclosure recommendations


Optimal enclosure size 1.4 cubic ft (40 L)
