XSONIC AIRMAR TM185M

SKU:
000-13998-001
Price:
$1,549.00 inc. GST

Description

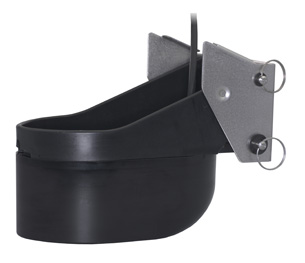

TM185M - Plastic 1kW Transom-Mounted Medium Chirp Depth and Temperature transducer. 9-pin connector and 10m cable.

Features:

Depth and fast-response water-temperature sensor.
1 kW with a maximum depth of 457 m (1,500')
Medium frequency: 85 to 135 kHz.
16° to 11° beamwidth.
50 kHz of total bandwidth from one transducer.
Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth.
Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation.
Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats.
Exclusive Xducer ID® technology.

Specifications:

Weight: 4.2 kg (9.2 lb.)
Recommended Boat Length: Up to 10 m (32')
Transom Angle: 3° to 21°
Acoustic Window: Urethane.
Includes: Adjustable, stainless steel bracket and mounting hardware.
Transducer Element: One internal broadband ceramic assembly.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 457 m (1,500')
  • Medium frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
  • Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
  • Exclusive Xducer ID® technology



Specifications

  • Weight: 4.2 kg (9.2 lb.)
  • Recommended Boat Length: Up to 10 m (32')
  • Transom Angle: 3° to 21°
  • Acoustic Window: Urethane
  • Includes: Adjustable, stainless steel bracket and mounting hardware
  • Transducer Element: One internal broadband ceramic assembly
