XS SERIES 10" 600WATT SUB WOOFER - CLASSIC
Description
Continuing to set the benchmark for marine audio entertainment, the Fusion XS Series subwoofer features trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, the XS subwoofer is designed to consistently produce quality low frequency audio at any volume level, season after season.
With an IP65 weatherproof rating, True-Marine design and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series subwoofer is built to last on your boat.
Features:
Versatile Design: With versatile options for integrating your subwoofer into your audio system, you can customize your setup to suit your audio requirements. Wire your subwoofer traditionally through an amplifier or create a 2.1 audio zone by connecting your subwoofer and two speakers directly to a compatible Fusion stereo with DSP, like the Apollo Series, without requiring an external amplifier.
Quality Audio Reproduction: Enjoy quality low frequency audio at any volume level.
True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating with a 3-year warranty.

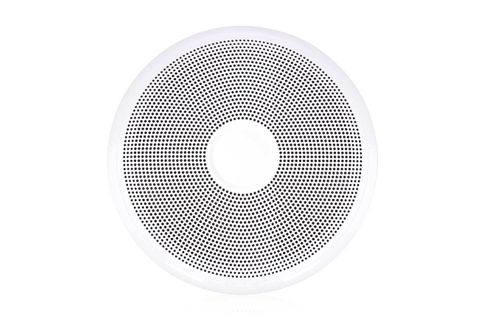

Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your boat, with both Classic Black and Classic White grilles supplied in the box.
Designed To Comply With ISO12216: Tested to international standards for pressure and watertightness, it recognizes the XS Series are designed and built to the highest industry standards for quality and robustness.
EXPERIENCE SOUND AND COLOUR
Enjoy high-performance low-end frequencies and multi-color RGB LED lighting1 with the XS Series subwoofers from Fusion – designed to add another dimension to your on-water audio entertainment experience at a mid-range price point.
Experience multi-colour RGB LED lighting1 to brighten up your boating experience.
Create a 2.1 audio zone to reduce system cost and simplify installation.
Enjoy high-resolution bass reproduction from the quality polypropylene cone.
With an increase in real power, the voice coil provides a high-quality sound experience.
The subwoofers are available in 10″ designs with both classic- and sports-style grilles.
Engineered to last season after season, the subwoofers include a 3-year warranty.
General |
|
| Physical dimensions (Diameter x Depth) |
Classic: 10.79" x 5.59" (274 x 142 mm) Sports: 10.79" x 5.79" (274 x 147 mm) |
| Water and dust rating | IP65 |
| Speaker size | 10" |
| Peak power (Watts) | 600 W |
| RMS power (Watts) | 120 W |
| Sensitivity (1 W / 1 m) | 87 dB |
| Magnetic structure | 41 oz |
| Frequency response | 30 Hz - 2 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 40 - 300 W |
| LED lighting | Yes - RGB (sports-style only) |
| LED supply voltage | 10.8-16 VDC (sports-style only) |
| LED load current @ 14.4 VDC | 150 mA (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.5" |
| Operating temperature range | Polypropylene cone with rubber surround |
| Compass-safe distance | 146" (370 cm) |
| Warranty | 3 years |
Mounting dimensions |
|
| Mounting diameter clearance | 8.78" (223 mm) |
| Mounting depth clearance | 4.45" (113 mm) |
Optimum enclosure recommendations |
|
| Sealed enclosure volume1 | 1.4 cubic ft (40 L) |
