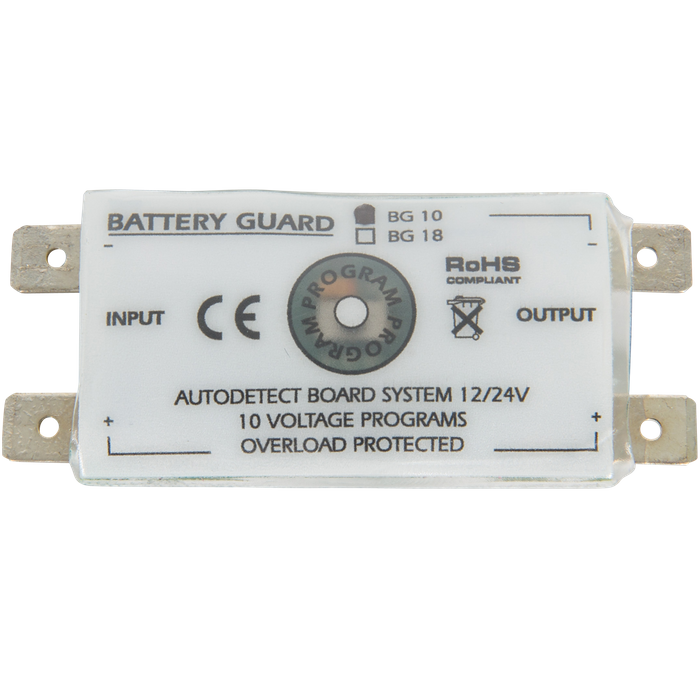

LOW VOLTAGE CUT OUT 10AMP

SKU:
EN-LBC1224-10
Price:
$86.91 inc. GST

Description

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).

Microprocessor Controlled
The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage parameters.

Additionally, the ePOWER LBC range offers features like:

Overvoltage Protection
Ignition proof (no relay, no spark)
Delayed alarm output
Delayed load disconnect

Features

The ePOWER Low Battery Cutoff protects your batteries from non essential loads before the battery is completely discharged causing damage to batteries and potently denying your engine cranking power. These Low Battery Cutouts also protect connected electrical appliances against over voltage. The voltage load is disconnected whenever the DC voltage goes beyond 16V (12V mode) or 32V (24V mode).

Microprocessor Controlled

The ePOWER LBC is microprocessor controlled with 10 different programs that engage or disengage the voltage load over several different voltage parameters.

Additionally, the ePOWER LBC range offers features like:

  • Overvoltage Protection
  • Ignition proof (no relay, no spark)
  • Delayed alarm output
  • Delayed load disconnect

Applications

  • Recreational vehicles
  • Service vehicles
  • Maritime applications

Specifications

EN-LBC1224-10
Auto Voltage Detect 12 / 24V
Max Load (shut down current) 10 – 15A
Peak current 75A @ 12V
Weight 20 g
Dimension LxWxH 62mm x 27mm x 9mm
