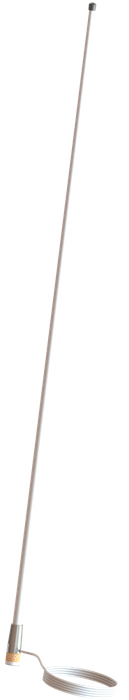

SCAN AM/FM56 + 10M CABLE, 2.7M LENGTH

SKU:
15056-612
Price:
$276.00 inc. GST

Description

Long range DAB/AM/FM Antenna for the leisure market.

DAB/AM/FM receiving antenna especially made for leisure boats
Economical replacement for all professional DAB/AM/FM antennas
Matching designs available for other frequency bands
For mounting on US style brackets with 1"-14NF threaded stud

Details

  • DAB/AM/FM receiving antenna especially made for leisure boats
  • Antenna with fixed cable (10 or 20 m)
  • Similar design available for VHF and AIS bands
  • For mounting on US style brackets with 1"-14NF threaded stud
  • Full omni-directional radiation pattern
  • No groundplane needed

Electrical specifications

FREQUENCY

(DAB/FM/AM Radio Broadcast bands)

IMPEDANCE

Nom. 50 Ohm

POLARISATION

Vertical

ANTISTATIC PROTECTION

Direct Ground

Mechanical specifications

COLOR

White and chrome

HEIGHT

Approx. 2.7 m

WEIGHT

1.4 kg (without cable)

MOUNTING

On brackets with 1"-14NF threaded stud (US style)

MOUNTING PLACE

On deck

MATERIALS

PU-painted glassfibre, PVC, copper and chrome plated solid brass

OPERATING TEMPERATURE

-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR

No connector supplied

CABLE

10 or 20 m white RG58 cable fixed to antenna (See "Ordering information")

INGRESS PROTECTION

IP24

SERIAL NO.

On product label
