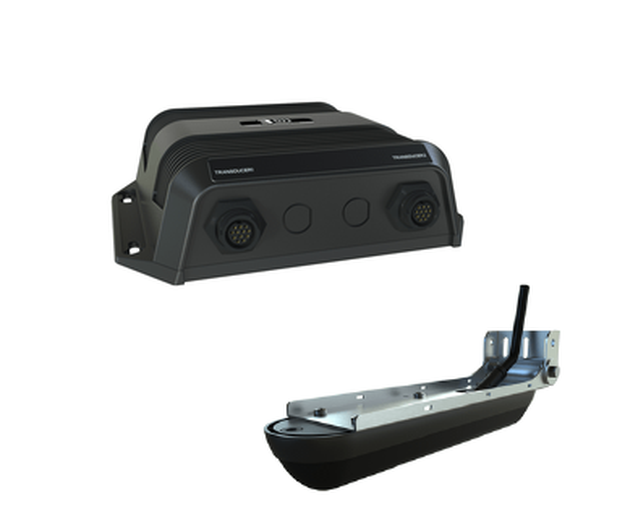

STRUCTURESCAN 3D XDCR AND MODULE
Description
StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data.
StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.
Easier Visualization
3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.
Master The Bottom Line
For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.
StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data.
StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.
Easier Visualization
- 3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.
Master The Bottom Line
- For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.
Technical/Environmental
| Product Width | 180 mm / 7.1 in |
| Product Height | 57 mm / 2.2 in |
| Product Weight | 0.9 kg / 2 lbs |
| Operating Temperature | -28° to 75° C (-20° to 167° F) |
| Water Resistance | 1PX-7 |
| Power Supply (Supply Voltage) | 12 or 24 V DC(max range 9 V to 32 V DC) |
Sonar Performance
StructureScan
| Output Power | 500w RMS |
| Max Side Range | 600ft each side |
| Max Down Range | 300 ft |
| Frequency | 455 & 800kHz |
Six Cable Connections
| Ethernet | 3 ports |
| Power | 4 Pin power connector |
| Transducer Port 1 | Black 12 pin connector for use with StructureScan 3D Transducer Cable 1 |
| Transducer Port 2 | Black 12 pin connector for use with StructureScan 3D Transducer Cable 2 |
