BT1 BASE STATION + AP REMOTE

SKU:
000-12316-001
Price:
$639.00 inc. GST

Description

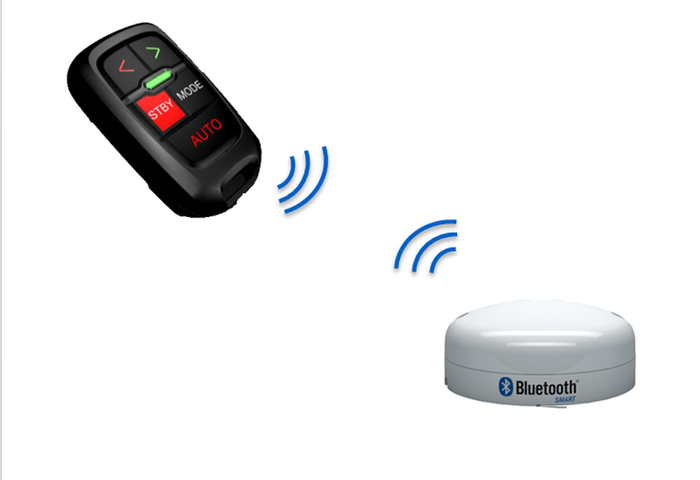

WR10 Wireless Autopilot remote and Base station. Compatible with the following autopilot computers, NAC-1, NAC-2, NAC-3 and H5000 Pilot Computer.

Key Features

  • Easy to use, simple to install
  • Compact, lightweight remote with large buttons
  • Steer or set heading in 1° and 10° increments
  • Dedicated autopilot standby and engage buttons
  • Wristband or lanyard attachment
  • Up to 30 metres range
  • Waterproof base station with deck or pole-mount options

Specifications

Base station

Power supply and interface 9-16 V DC via Micro-C network
Power consumption <100 mA at 12 V DC
Temperature Operating -25°C to +60°C, Storage: -40°C to +85°C
Humidity 66°C, 95% RH, 18 hrs
Environmental protection IPx7
In-rush current 2 A for 20 ms (@ internal 5 V)
Connection cable Micro-C drop cable 1.8 m (6 ft)
Signal wire gauge 24 AWG
Power wire gauge 22 AWG
Power wire resistance 5.7 ohms per 100 meters
Maximum current 3 A
Connector Micro-C T-Joiner

Remote controller

Power supply 2 AAA batteries
Temperature Operating -20°C to +55°C, Storage: -30°C to +70°C
Humidity 66°C, 95% RH, 18 hrs
Environmental protection IPx6, IPx7
Operation 5 buttons
Communication Bluetooth via Base station, range >30 m
Mounting Lanyard strap or wrist mounted
