SIMRAD FU80 FOLLOW-UP STEERING LEVER

SKU:
000-10183-001
Price:
$1,329.00 inc. GST

Description

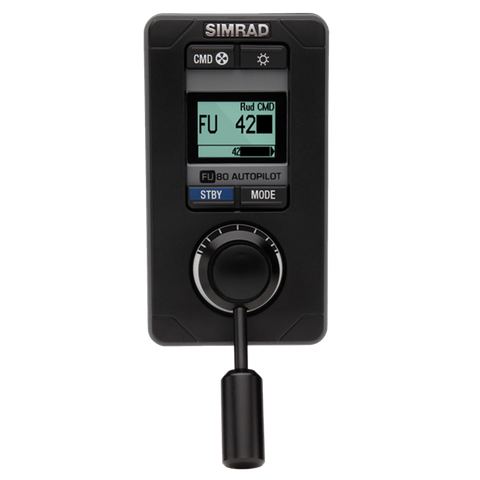

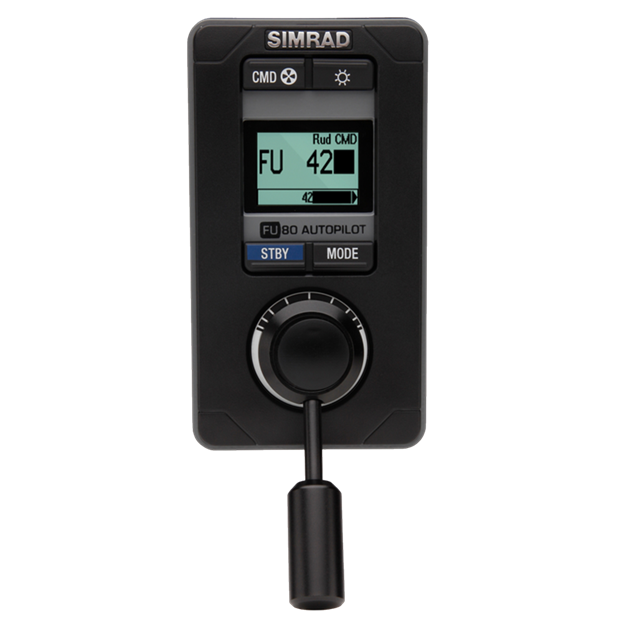

The FU80 is a manoeuvre controller for Simrad autopilot systems, and gives you direct control of your boat’s rudder angle through intuitive Follow Up steering. Turn the lever to port or starboard, and your rudder moves to the same angle. When auto-steering, the FU80 enables easy heading or course adjustments.

Display

Display resolution 128 x 64 (H x W)
Display type 2” Monochrome, Bounded, Transflective
Viewing direction NF80: 12 o’clock
  FU80/QS80: 6 o’clock

Power

Power supply Via NMEA2000 CAN bus or SimNet
Current consumption Off Network <20 mA (NMEA 2000: LEN 1)
On with max illumination Network <110mA (NMEA 2000: LEN 3)

Interface

CAN/NMEA 2000 Factory connected drop cable with Micro-C connector. 6 m (19.7 ft)
SimNet Via optional SimNet to Micro-C adapter cable

Technical

Housing Front Aluminum with black plastic snapon bezel
Back Plastic cover
Temperature -25° C to + 55° C (-13° F to +131° F)
Weight NF80, FU80: 0.5 kg (1.10 lbs)
  QS80: 0.4 kg (0.88 lbs)

Environmental

Weather IEC 60945 sec. 8.8, exposed, front when desk mounted or bulkhead mounted with optional frame.
  Corresponds to IPX6
Compass safe distance 0.4 m (ref. IEC 60945 sec.11.2)
