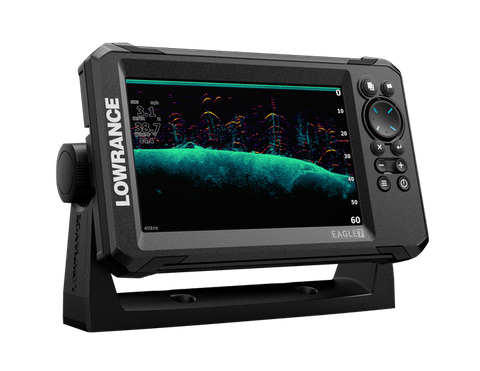

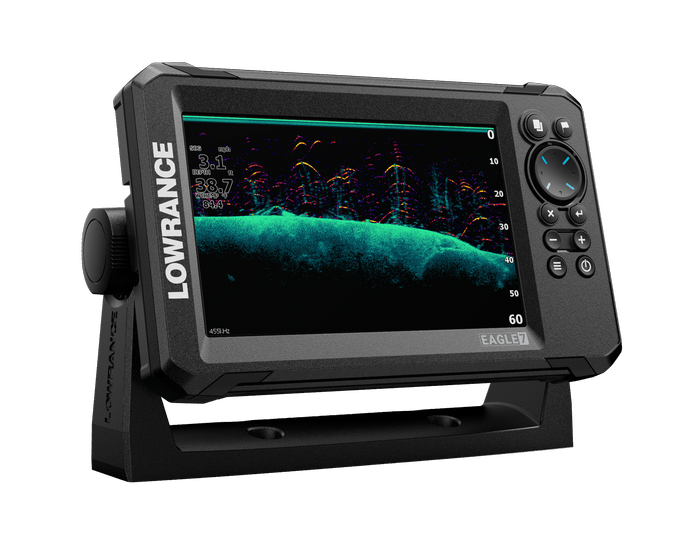

EAGLE-7 TRIPLESHOT™ AUS/NZ: 7" IPS SCREEN, TRIPLESHOT™ HD TRANSDUCER
Description
Eagle-7 TripleShot™ AUS/NZ: 7" IPS screen, TripleShot™ HD transducer, C-MAP® Embedded inland and coastal charts for New Zealand and Australia.
Overview
EASY TO USE SONAR
TripleShot™ HD. Give yourself the best chance of finding fish with underwater views to the side and below the boat, all in one transducer. TripleShot HD features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging™.
FishReveal™. Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.
Autotuning Sonar. Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.
DETAILED CHARTING
C-MAP EMBEDDED CHARTS FOR NEW ZEALAND AND AUSTRALIA: Spend more time fishing and less time searching, thanks to the high resolution of C-MAP® Embedded inland and coastal charts for New Zealand and Australia. With Eagle, you have all the detail you need to discover and navigate to the best fishing spots, faster.
GENESIS LIVE Know your local waters better than anyone with the ability to create custom ½-foot contour maps of your local lake or uncharted water in real time.
DESIGNED FOR FISHING
IPS SCREENS. See clearly wherever you go with a new IPS screen, offering improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.
NEW CONNECTOR SYSTEM. Set up in an instant with our improved twist-locking connector, promising an easy and reliable installation and removal every time.
ONE-YEAR WARRANTY. Our priority is to give you superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind thanks to our two-year warranty guarantee.
Key Features:
- Enhanced TripleShot™ HD Transducer with Autotuning sonar
- C-MAP® Embedded inland and coastal charts for New Zealand and Australia feat. Genesis® Live
- IPS screen, viewable from all angles, even in polarized glasses
- New reliable twist-lock connector system for easy installation in any boat or kayak
- SD card slot for software updates, Genesis Live recording and charting add-ons.
- See fish hiding in cover with FishReveal™ mode
- Increase contrast and viewability with all-new Imaging color palettes
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features newly designed SplitShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal set up. A new IPS screen provides higher resolution and visibility from all angles. And C-MAP® Embedded inland and coastal charts for New Zealand and Australia allow you to spend more time fishing and less time searching.
Display
| Size | 7" (177 mm) |
| Resolution | 800x480 |
| Type | IPS |
| Antifog | Bonded LCD |
| Viewing angles | 85° all |
| Backlight | LED |
Networking
| SD Card Storage | Micro SD Card(32 gb Max) |
Power
| Local Supply | 12 VDC |
| Consumption local supply | 550mA, 250mA at 12VDC (backlight full/off) |
| Recommended Fuse Rating | 5A |
Interface
| Interface | Keypad:9-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages |
GPS
| Correction | SBAS |
| Time to first fix | 45 s |
| GPS | GPS / SBAS |
Enviroment
| Humidity | 66C a 95% por 48hrs |
| Temperature operation | "-15°C to +55°C (5° F to 131° F) |
| Temperature storage | "-20°C to +60°C (4°F to 140°F) |
| Protection | IPX7 with card door closed |
Mechanical
| Weight | 0.67 kg (lb) |
| Size | 225mm(9") x 139mm(6") |
| Mounting | Panel mount or bracket |
| Material | CYCOLOY C1200HF (PC & ABS BLEND) |
| Color | Black |
| Cable Inlet | 1 - 2 pin pwr conn / 1 - 8 pin sonar connector |
