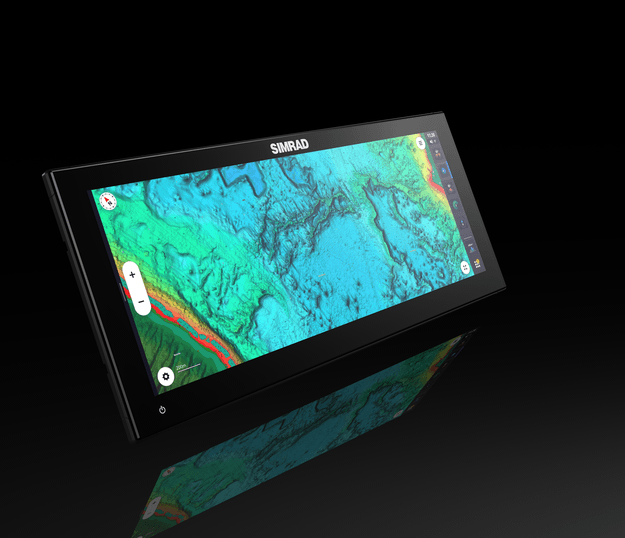

NSX 3015UW, Smart chartplotter / fishfinder. 15-inch ultrawide high-definition display. Built-in 1 kW echosounder, GPS, and WIFI. A C-MAP® DISCOVER™ X or REVEAL X™ chart card is required. No transducer.

NSX Ultrawide concepts
The current square display format limits visibility and functionality, especially with charts and when using split screens to view multiple apps. As a result of wasted space and visual imbalances, existing displays often fail to deliver a clean and sleek dash aesthetic. The installation of multiple screens slows down production. The additional dash modifications, cabling, and setup consume additional installation time. It’s simply inefficient.

Introducing THE WORLD’S FIRST FULLY-FUNCTIONAL ULTRAWIDE MFD
The new NSX ULTRAWIDE, the next step in the NSX platform evolution. Revolutionary 12" and 15" ultrawide marine MFDs, setting a new standard in the market. NSX ULTRAWIDE offers consumers enhanced visibility, control, and functionality. OEMs can deliver a unique, premium aesthetic, and all the advantages of dual displays, with none of the hassle. NSX ULTRAWIDE offers the same active area as two smaller displays. But, in terms of functionality, ULTRAWIDE offers so much more. It condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.

NSX Ultrawide concepts

The current square display format limits visibility and functionality, especially with charts and when using split screens to view multiple apps. As a result of wasted space and visual imbalances, existing displays often fail to deliver a clean and sleek dash aesthetic. The installation of multiple screens slows down production. The additional dash modifications, cabling, and setup consume additional installation time. It’s simply inefficient.

Introducing THE WORLD’S FIRST FULLY-FUNCTIONAL ULTRAWIDE MFD

The new NSX ULTRAWIDE, the next step in the NSX platform evolution. Revolutionary 12" and 15" ultrawide marine MFDs, setting a new standard in the market. NSX ULTRAWIDE offers consumers enhanced visibility, control, and functionality. OEMs can deliver a unique, premium aesthetic, and all the advantages of dual displays, with none of the hassle. NSX ULTRAWIDE offers the same active area as two smaller displays. But, in terms of functionality, ULTRAWIDE offers so much more. It condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.

Key Features

  • NSX ULTRAWIDE delivers all the benefits of multiple displays, without the hassle of multiple installations
  • Fewer cables
  • One cutout
  • Less setup
  • Condenses the same wealth of information from two screens into one, delivering a seamless and fully immersive user experience - all thanks to the new cutting-edge ultrawide aspect ratio and high-pixel density display.
  • The panoramic display compliments the aesthetics of your boat designs, letting you create eye-catching, low-profile dashboards straight out of the luxury auto world.
  • Information that is more consumable
  • More screen, less space
  • Simplified installation
  • Unique screen format – new to marine
  • Better viewability
  • Enables automotive-style dash designs

DISPLAY

Size and Type 15" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
Resolution 1920 x 720 px
Viewing Angles 85° (top, bottom, left, and right)
Screen Brightness >1000 nits
Backlight Color White

POWER

Supply Voltage 12 V DC (10 - 17 V DC min - max)
Power Consumption max 25 W (1811 mA at 13.8 V)
Protection Reverse polarity and over voltage (Max 18V)
Recommended Fuse Rating 3A

PHYSICAL

DIMENSIONS W X H X D

-No Bracket, no suncover W: 390.0 mm (15.55") x H: 170.4 mm (6.71") x D: 88.5 mm (3.48")
-With gimbal bracket H: 180. mm (7.10") D:96.5 mm (3.80")
Weight 1.9 kg (4.2 lbs)
MountingType Rear mount (bracket supplied), Bracket mount (bracket optional)
Compass Safe Distance 50 cm (1.7 ft)

ENVIRONMENTAL

Operating Temperature Range -15°C to 55°C (5°F to 131°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Waterproof rating IPx6 and IPx7
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Shock Vibration 100,000 cycles of 20 G

INTERFACE AND CONNECTIONS

Interface Multi-touch screen
Sonar One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 KHz, SideScan & DownScan upto 800 KHz, Network sonar with other NSX.
Ethernet 1 port (5-pin connector) Radar Compatibility: Halo Dome radars, Halo open array radars, 3G/4G, HD Radars
Weather Not in first release
USB 1 port (USB A) Output: 5 V DC, 1.5 A
External Storage 1 MicroSD slot, 1 port (USB A)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN

NMEA 2000 PGN SUPPORTED: RECEIVE ONLY

  • 59392 ISO Acknowledgement
  • 59904 ISO Request
  • 60160 ISO Transport Protocol, Data Transfer
  • 60416 ISO Transport Protocol, Connection M.
  • 65240 ISO Commanded Address
  • 60928 ISO Address Claim
  • 126208 ISO Command Group Function
  • 126992 System Time
  • 126996 Product Info
  • 126998 Configuration Information
  • 127233 Man Overboard Notification (MOB)
  • 127237 Heading/Track Control
  • 127245 Rudder
  • 127250 Vessel Heading
  • 127251 Rate of Turn
  • 127252 Heave
  • 127257 Attitude
  • 127258 Magnetic Variation
  • 127488 Engine Parameters, Rapid Update
  • 127489 Engine Parameters, Dynamic
  • 127493 Transmission Parameters, Dynamic
  • 127500 Load Controller Connection State / Control
  • 127501 Binary Status Report
  • 127503 AC input status
  • 127504 AC Output Status
  • 127505 Fluid Level
  • 127506 DC Detailed Status
  • 127507 Charger Status
  • 127508 Battery Status
  • 127509 Inverter Status
  • 128259 Speed, Water referenced
  • 128267 Water Depth
  • 128275 Distance Log
  • 129025 Position, Rapid Update
  • 129026 COG & SOG, Rapid Update
  • 129029 GNSS Position Data
  • 129033 Time & Date
  • 129038 AIS Class A Position Report
  • 129039 AIS Class B Position Report
  • 129040 AIS Class B Extended Position Report
  • 129041 AIS aids to Navigation
  • 129283 Cross Track Error
  • 129284 Navigation Data
  • 129539 GNSS DOPs
  • 129540 AIS Class B Extended Position Report
  • 129545 GNSS RAIM Output
  • 129549 DGNSS Corrections
  • 129551 GNSS Differential Correction Receiver Signal
  • 129793 AIS UTC and Date Report
  • 129794 AIS aids to Navigation
  • 129798 AIS SAR Aircraft Position Report
  • 129801 Cross Track Error
  • 129802 AIS Safety Related Broadcast Message
  • 129283 Cross Track Error
  • 129284 Navigation Data
  • 129539 GNSS DOPs
  • 129540 GNSS Sats in View
  • 129794 AIS Class A Static and Voyage Related Data
  • 129801 AIS Addressed Safety Related Message
  • 129802 AIS Safety Related Broadcast Message
  • 129808 DSC Call Information
  • 129809 AIS Class B “CS” Static Data Report, Part A
  • 129810 AIS Class B “CS” Static Data Report, Part B
  • 130060 Label
  • 130074 Route and WP Service - WP List - WP Name & Position
  • 130306 Wind Data
  • 130310 Environmental Parameters
  • 130311 Environmental Parameters
  • 130312 Temperature
  • 130313 Humidity
  • 130314 Actual Pressure
  • 130316 Temperature, Extended Range
  • 130569 Entertainment - Current File and Status
  • 130570 Entertainment - Library Data File
  • 130571 Entertainment - Library Data Group
  • 130572 Entertainment - Library Data Search
  • 130573 Entertainment - Supported Source Data
  • 130574 Entertainment - Supported Zone Data
  • 130576 Small Craft Status
  • 130577 Direction Data
  • 130578 Vessel Speed Components
  • 130579 Entertainment - System Configuration Status
  • 130580 Entertainment - System Configuration Status
  • 130581 Entertainment - Zone Configuration Status
  • 130582 Entertainment - Zone Volume Status
  • 130583 Entertainment - Available Audio EQ Presets
  • 130584 Entertainment - Bluetooth Devices
  • 130585 Entertainment - Bluetooth Source Status

TRANSMIT

  • 60160 ISO Transport Protocol, Data Transfer
  • 60416 ISO Transport Protocol, Connection M.
  • 126208 ISO Command Group Function
  • 126992 System Time
  • 126993 Heartbeat
  • 126996 Product Info
  • 127237 Heading/Track Control
  • 127250 Vessel Heading
  • 127258 Magnetic Variation
  • 127502 Switch Bank Control
  • 128259 Speed, Water referenced
  • 128267 Water Depth
  • 128275 Distance Log
  • 129025 Position, Rapid Update
  • 129026 COG & SOG, Rapid Update
  • 129029 GNSS Position Data
  • 129283 Cross Track Error
  • 129285 Navigation - Route/WP Information
  • 129284 Navigation Data
  • 129285 Route/Waypoint Data
  • 129539 GNSS DOPs
  • 129540 GNSS Sats in View
  • 130074 Route and WP Service - WP List - WP Name & Position
  • 130306 Wind Data
  • 130310 Environmental Parameters
  • 130311 Environmental Parameters
  • 130312 Temperature
  • 130577 Direction Data
  • 130578 Vessel Speed Components"
NMEA 0183 No
GPS Internal, 10Hz, WASS, MSAS, EGNOS
GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 32 Channels
GPS Update rate 10Hz
J1939 No
WiFi IEEE 802.11b/g/n
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic

LANGUAGES

  • German (Deutsch)
  • English (English)
  • Dutch (Nederlands)
  • Danish (Dansk)
  • Spanish (Español)
  • French (Français)
  • Italian (Italiano)
  • Norwegian (Norsk)
  • Portuguese (Português)
  • Finnish (Suomi )
  • Swedish (Svenska)
  • Icelandic (Islenska)
  • Greek (ελληνικά)
  • Chinese (中文)
  • Turkish (Türkçe)
  • Estonian (Eesti)
  • Croatian (Hrvatski)
  • Lithuanian (Lietuvių)
  • Latvian (Latviešu )
  • Polish (Polski)
  • Chinese Simplified (中文)
  • Japanese (日本語)
  • Korean (한국어)
  • Ukrainian ()
Charts Supported C-MAP Discover X, C-MAP Reveal X, third party charts
AIS Receive AIS data over NMEA 2000
Digital Switching C-Zone, Simrad COMMAND DDS

WARRANTY

Warranty Period 2 Years
