XSONIC P66 TRANSDUCER

SKU:
000-13919-001
Price:
$229.00 inc. GST

Description

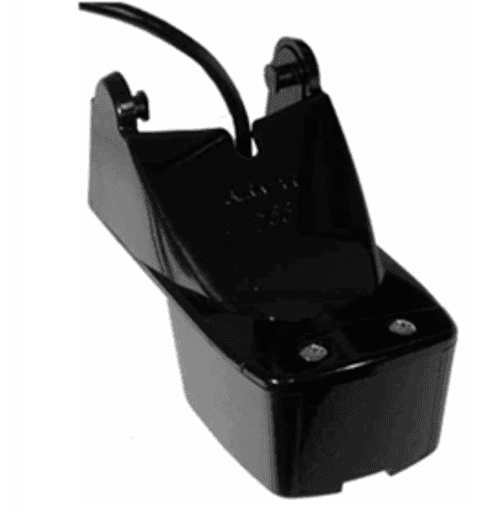

The P66 transom-mount features 50/200 kHz, dual-frequency, single, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images.

Features:

Depth, speed, and temperature.
600 W Dual-frequency element.
50 kHz with a 45° beamwidth for depth performance to 353 m (1,200').
200 kHz with a 12° beamwidth for depth performance to 206 m (700').
Recessed water-flow channel protects paddlewheel from obstructions.
Plastic release bracket protects sensor from frontal impact.
Sensor can be removed from bracket without tools for easy service or storage.
Chemical and impact-resistant plastic housing.

The P66 transom-mount features 50/200 kHz, dual-frequency, single, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images.

Features

  • Depth, speed, and temperature
  • 600 W Dual-frequency element
  • 50 kHz with a 45° beamwidth for depth performance to 353 m (1,200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Recessed water-flow channel protects paddlewheel from obstructions
  • Plastic release bracket protects sensor from frontal impact
  • Sensor can be removed from bracket without tools for easy service or storage
  • Chemical and impact-resistant plastic housing

Specifications

Weight 0.5 kg (1.1 lb.)
Recommended Boat Length Up to 8 m (25')
Transom Angle 2° to 22°
Acoustic Window Layered plastic urethane (LPU)
Speed Performance Up to 44 knots (50 mph)
