NAC-2 AUTOPILOT CORE PACK

SKU:
000-13335-001
Price:
$2,539.00 inc. GST

Description

NAC-2 Autopilot Core Pack

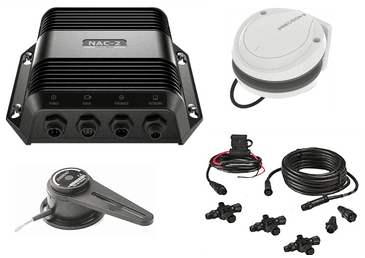

This pack includes the Simrad NAC-2 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network. This pack is recommended for rudder-steered boats up to 10 metres (35 feet) in length, and is suitable for use with low-current drive pumps including the Simrad RPU80, mechanical drives such as the Simrad SD10, hydraulic linear drives such as the HLD350, and solenoid valves.

Mechanical/Environmental

Operating temperature -25°C to +55°C (13°F to 131°F)
Protection Splashproof, IPx5
Weight 0.6 kg (1.3 lbs)
Overall Dimensions Width: 7.1 in \ 180 mm
  Height: 2.2 in \ 57 mm

Electrical

Power supply 9-31.2 V DC
Load 140 mA + drive unit load
Performance Drive: 8 A cont., 16 A for 1 s

Interfaces

Network 1xMicroC (NMEA2000)
Feedback Variable voltage/resistive 0-5V
Drive output To PUMP-1 or HELM-1
Power supply 9-31.2 V DC
Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA
Clutch 12/24V DC, min 10mA, max 3A
