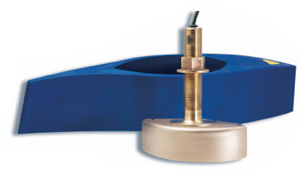

B258 BRONZE 1kW T/H 50/200Kh XSONIC

SKU:
000-13964-001
Price:
$1,529.00 inc. GST

Description

B258 Bronze 1 kW Thru Hull 50/200 Khz Depth/Temp w/HS Fairing Block - Beamwidth: 50 kHz—15° x 21°, 200 kHz—3° x 5°. - Four Elements. - Q at 50 kHz—9, Q at 200 kHz—15. 9 Pin black connector: Cable length 10.1 m (33.0 ft)

The B258 is a bronze, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for use with our BSM-1 echosounder for fishing in shallow, medium and deep waters.

Key Features:

The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.
Excellent for deep water bottom and structure fishing up to 500m/1640ft.
Calculate depth and temperature from one compact sensor.
Wide Operating Range from 1 knot to 45 knots.
Provides extremely accurate echosounding data, even at speeds of over 30 knots.
Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.

The B258 is an excellent, economical, 1 kW, dual-frequency transducer for anglers. Its unique four ceramic-element construction produces an elliptical beam that covers a wider area and produces excellent target resolution. The combination of 50 and 200 kHz make it a great option for both shallow and deep-water use. The included high-performance fairing gives excellent results at speeds up to 30 knots (34 MPH).

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW
  • 50/200 kHz producing elliptical patterns for wider coverage
  • 50 kHz with a 15° x 21° beamwidth (Max 671m)
  • 200 kHz with a 3° x 5° beamwidth (Max 305m)
  • Bronze-stem housing with high-performance fairing for optimal performance at speed
  • Greater surface area resulting in better sensitivity

Specifications

  • Weight: 3.6 kg (7.9 lb.)
  • Recommended Boat Length: More than 9 m (30')
  • Hull Material: Fiberglass or wood
  • Hull Deadrise: Up to 26° with fairing
  • Acoustic Window: Epoxy/urethane
  • Hole Diameter: 30 mm or 1-3/16"
  • Includes: High-performance fairing and mounting hardware

Transducer Specifications

Frequency 50/200 kHz
Power Rating 1kW
Speed Sensor No
Temperature Sensor Yes
Mounting Style Bronze Thru-Hull
Elements 4
Beamwidth @ -3dB 50 kHz—15° x 21°, 200 kHz—3° x 5°
