B45 BRONZE 600W T/H 50/200kHz

SKU:
000-13946-001
Price:
$429.00 inc. GST

Description

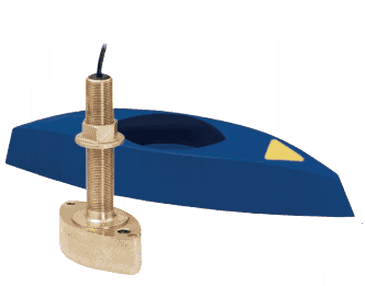

XSONIC AIRMAR B45. Black 9 pin connector 10m (33 ft) cable. The B45 is Airmar’s smallest, bronze, thru-hull stem, offering quality design at an economical price. The classic housing is streamlined to deflect aerated water from the transducer’s face, providing solid echo returns.

The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. The included fairing streamlines the transducer and increases the performance—even at higher speeds.

Features

  • Depth and fast-response water-temperature sensor
  • 600 W Dual-frequency element
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Excellent performance and sensitivity in a small housing
  • Bronze-stem housing with high-performance fairing for optimal performance at speed
  • Bronze transducer housing

Specifications

  • Weight: 2.5 kg (5.5 lb.)
  • Recommended Boat Length: Up to 9 m (30’)
  • Hull Material: Fiberglass or wood
  • Hull Deadrise: Up to 26° with fairing
  • Acoustic Window: Urethane
  • Hole Diameter: 22 mm or 7/8"
  • Includes: High-performance fairing and mounting hardware
