XSONIC P319 T/D

SKU:
000-13915-001
Price:
$259.00 inc. GST

Description

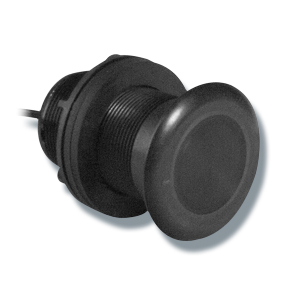

The P319 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile, plastic housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

Depth only or depth and temperature.
600 W Dual-frequency element.
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200').
200 kHz with a 12° beamwidth for depth performance to 206 m (700').
Right-angle cable exit saves space and protects transducer if stepped on.
Included rubber washer allows tightening of the hull nut to irregular hull surfaces.
Low-profile housing has minimum drag.
Plastic housing is ABYC H-27 compliant.
Stainless steel (SS60) model is also available to accommodate all hull materials.

Features

  • Depth only or depth and temperature
  • 600 W Dual-frequency element
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Right-angle cable exit saves space and protects transducer if stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile housing has minimum drag
  • Plastic housing is ABYC H-27 compliant
  • Stainless steel (SS60) model is also available to accommodate all hull materials.

Specifications

Weight 0.6 kg (1.3 lb.)
Recommended Boat Length Up to 8 m (25')
Hull Material Fiberglass or metal
Hull Deadrise Best performance 0-7°. Can accommodate up to 12°.
Acoustic Window Urethane
Hole Diameter 51 mm (2")
