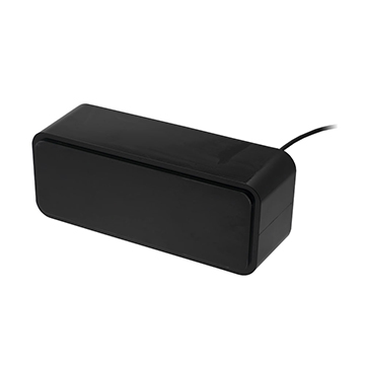

XSONIC AIRMAR CM599LH-W
Description
Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat is essential down to 152 m (500').
The low-frequency band is rated to 3 kW and produces amazing deep-water performance to 3,048 m (10,000'). Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.
Features:
Depth and fast-response water-temperature sensor.
3 kW for superior deep-water performance.
3 kW low frequency: 28 to 60 kHz.
23° to 9° port-starboard beamwidth.
11° to 5° fore-aft beamwidth.
Maximum depth performance to 3,048 m (10,000').
1 kW high frequency: 150 to 250 kHz.
25° constant beamwidth.
Maximum depth of 152 m (500').
132 kHz of total bandwidth from one transducer.
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth.
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation.
High wide beamwidth yields more coverage for detecting fish in the upper-water column.
Urethane housing with Curved-edge Design for wet-box installation.
Also available as an external (R509LHW) mount.
Features
- Depth and fast-response water-temperature sensor
- 3 kW for superior deep-water performance
- 3 kW low frequency: 28 to 60 kHz
- 23° to 9° port-starboard beamwidth
- 11° to 5° fore-aft beamwidth
- Maximum depth performance to 3,048 m (10,000')
- 1 kW high frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500')
- 132 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Urethane housing with Curved-edge Design for wet-box installation
- Also available as an external (R509LHW) mount
- Exclusive Xducer ID® technology
Specifications
- Weight: 14.2 kg (31.2 lb.)
- Recommended Boat Length: 8 m (25') and above
- Hull Material: Solid fiberglass or steel
- Hull Deadrise: Accommodates any deadrise angle based on custom-cavity or welded-tank construction
- Acoustic Window: Urethane
- Transducer Element: 25 internal broadband ceramic assemblies
