SCAN AM/FM54 + 10M CABLE, 1.5M LENGTH
SKU:
15054-612
Price:
$195.50 inc. GST
Description

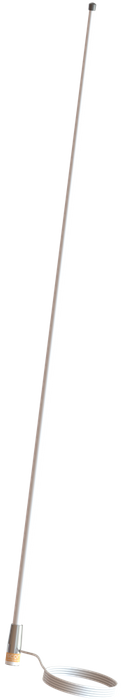

Scan AM/FM54 Antenna with 10m cable (1.5m)
Details
Long range DAB/AM/FM Antenna for the leisure market
- DAB/AM/FM receiving antenna especially made for leisure boats
- Economical replacement for all professional DAB/AM/FM antennas
- Matching designs available for other frequency bands
- For mounting on US style brackets with 1"-14NF threaded stud
Electrical specifications
FREQUENCY
(DAB/FM/AM Radio Broadcast bands)
ANTENNA TYPE
End-fed full 1/2 λ dipole - no groundplane needed
IMPEDANCE
Nom. 50 Ohm
POLARISATION
Vertical
RADIATION PATTERN
Omni-directional
ANTISTATIC PROTECTION
Direct Ground (DC-short)
Mechanical specifications
COLOR
White and chrome
LENGTH
1375 mm
WEIGHT
780 g (with 10 m cable), 1140 g (with 20 m cable)
MOUNTING
On brackets with 1"-14NF threaded stud (US style)
MOUNTING PLACE
On deck or mast
MATERIALS
PU-painted glass fibre, PVC, copper and chrome plated solid brass
OPERATING TEMPERATURE
-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
CONNECTOR
No connector supplied
CABLE
10 or 20 m white RG58 cable
SERIAL NO.
On product label
