THRUSTER, 80KG, 185mm, 12V, TWIN

SKU:
SE80/185T-12V
Price:
$3,726.85 inc. GST

Description

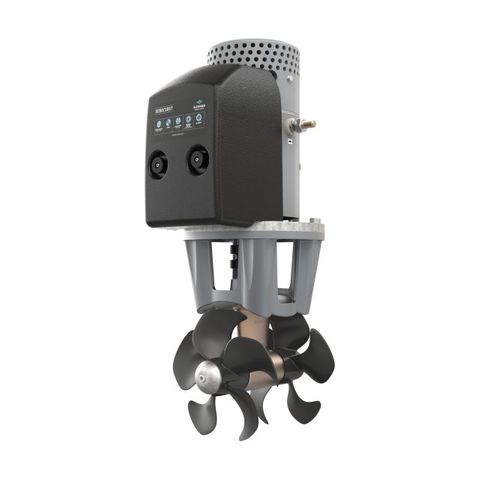

SE80 Tunnel thruster, 12V 80kg thrust ON/OFF

The SE80/185T suits a wide range of boats around the 12m/40ft mark and is thereby a very popular model. Utilizing the same mechanical parts as the even more powerful SE100/185T, the reduced power makes it an exceptionally energy efficient thruster demanding less from the electric installation as well as being a very cost efficient model with a compact installation size. The SE80/185T includes all the important and unique Sleipner features and qualities - why settle for less

Properties



FLEXIBLE INSTALLATION

Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.



WATERPROOF HOUSING

Waterproof housing for use in areas exposed to water.



DC

Powered by direct current.



ANALOG

Sleipner analog signal cables with Plug & Play connectors are color-coded to match the wiring diagrams with high-quality connectors to ensure a correct installation.



OVERHEAT PROTECTION

Automatic detection of overheating of internal components. When an unsafe temperature is detected, the unit is automatically shut off to prevent overheating.



IGNITION PROTECTION

Our ignition-protected products are compliant with ISO 8846 and ensure gasoline or other flammable fumes cannot enter or be ignited.



GALVANIC SEPARATION

Immersed parts exposed to seawater are galvanic isolated from the onboard electrical system, eliminating stray currents.



SEALED DRIVE LUBRICATION

The thruster gearleg is pre-filled for lifetime lubrication and sealed using a long-time mechanical seal with ceramic and carbon surfaces for ultimate security against water intrusion.



SINGLE PROPELLER

A properly engineered single propeller system will be the most energy efficient thruster. Its compact design fits easily into narrow bows making it the perfect match for our smaller thruster range. With more than 60.000 single propeller thrusters in use, the single propeller has proven its reliability.



Q-PROP™

The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.

  • The expected noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Sleipner thruster models with special adaptors



INTELLIGENT POWER CONTROL

Sleipner's patented intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions. In the case of a solenoid lock-in, the thruster will automatically stop without extra user action or controlling the main switch.

Power Value
Operating Power Electric
Power Requirement 12V DC
Power Output 4.4kW / 6hp
Thrust at 12V 96kg / 212lbs
Thrust at 10.5V 80kg / 176lbs
Operational Running Limit (min) 2-3 duty cycle at 20°C
Nominal Current Draw 530A
Min. Battery CCA (DIN) 550
Min. Battery CCA (SAE) 1045
Min. Battery CCA (EN) 940
Recommended fuse ANL 400
Operational Intention Value
Ideal Vessel Class Motor boat, Sail boat
Ideal Vessel Size 10-15m / 35-48ft
Bow Capability Yes
Stern Capability Yes
Retractable Capability No
External Mounting Capability No
Tunnel Capability Yes
Weight Value
Weight 20kg / 44lbs

Measurements Value
(H) Height 352mm / 13.86in
(L) Length 206mm / 8.11in
(W) Width 252mm / 9.92in
(ID) Internal Diameter 185mm / 7.28in
(WD) Water Depth 185mm / 7.28in
(TL) Recommended Tunnel Length 216mm / 8.5in
(TL min.) Minimum Tunnel Length 179mm / 7.05in
(T min.) Minimum Tunnel Wall Thickness 6mm / 0.24in
(T max.) Maximum Tunnel Wall Thickness 8mm / 0.31in

Stern Measurements Value
(L) Internal Length 294mm / 11.6in
(+L) Tunnel Length 265mm / 10.4in
ID 185mm / 7.3in
(HT) Maximum Hull Thickness 56mm / 2.2in
