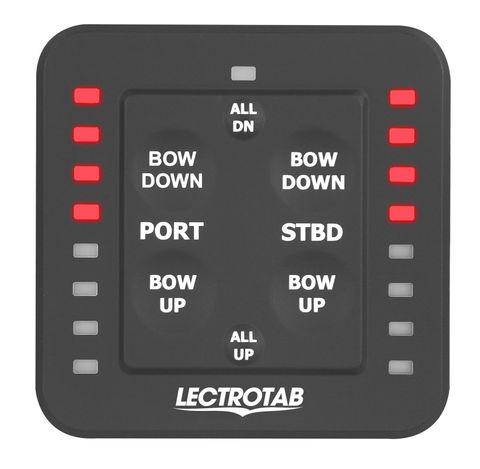

LECTROTAB CONTROLLER (AUTO RETRACT)

SKU:
CSLC-11-ATL
Price:
$664.13 inc. GST

Description

Lectrotab is excited to introduce a new control incorporating features requested by boat owners to provide a user friendly control for a more enjoyable boating experience.

Features:

One-Touch button to raise/lower tabs.
Automatic tab position return.
Completely sealed and waterproof.

FEATURES

  • Microprocessor based trim tab control with LED tab position indicators
  • Single button press to move both tabs up or down simultaneously
  • Direct replacement for Oval LED (SETR-61) controls
  • Automatic return to last tab position if ignition key is turned off and back on again
  • Completely sealed, completely waterproof and will not deteriorate in sunlight
  • Automatic tab retraction and calibration with key or accessory switch off
  • Easy upgrade from rocker switch style control
  • No external power module required for single or dual actuator per tab systems
  • LED tab position indicators dim automatically in darkness and brighten in sunlight
  • Adjustable programming features located on back of specification sheet
  • Operates on 12 or 24 volt dc systems

SPECIFICATIONS



Model Number Display Color Number of Stations / Actuators Overall Width Overall Height / Thickness Mounting Hole Cutout (Diameter) DC Voltage Fuse Size Power Input (1 Actuator per Tab) Fuse Size AUX Terminal (MUST CONNECT)
SLC-11 Black 1 or 2 Stations / 1 or 2 Actuators/tab 3.0" / 77mm 3.0" (77mm) / 437" (11mm) 2.25" (57mm) to 2.5" (64mm) 12/24 12vdc = 15 or 20 amp
24 vdc = 10amp		 1 to 2 amp
