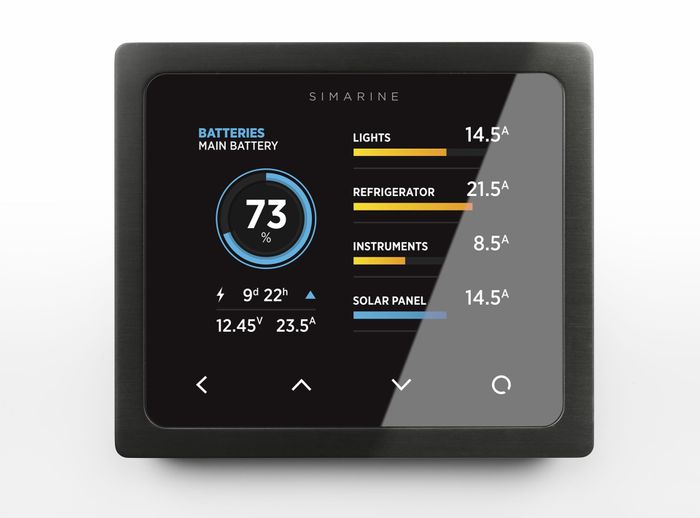

PICO BATTERY MONITOR (PANEL MOUNT)

SKU:
P003
Price:
$722.93 inc. GST

Description

SIMARINE’s advanced battery monitor suitable for smaller vessels and holiday vehicles.

It can be connected to:
Up to 1 battery bank.
2 additional battery voltage.
2 tank levels readings (for temperature monitoring).

SIMARINE’s advanced battery monitor for more demanding users.It can be connected to:

  • up to 6 battery banks,
  • 6 additional battery voltages
  • 14 tank levels (for temperature monitoring)
  • 20 consumer or power generation readings.


Compatible with all SIMARINE modules.

Operating
Power source voltage range 6 - 35 V
Temparature range -20 – +70 °C
Power consumption at 12 V
Operating, WiFi On, 100% illumination 90 mA
Operating, WiFi Off, 70% illumination 35 mA
Operating, WiFi Off, 0% illumination 18 mA
Power Off, logger still active 5 mA
Resolution
Current (A) ±0,01 A
Voltage (V) ±0,01 A
Amp hours (Ah) ±0,1 A
SOC - Stat of Charge ( 0 - 100%) ±0,01 A
Temperature ±0,1 °C / °F
Voltage inputs
Range 0 – 75 V
WIFI
Radio Frequency Band 2,4 GHz
Dimensions (without connector)
Standalon 89 x 84 x 10 mm
Panel 108,5 x 94 x 10 mm
Connectivity Up to
Batteries 6
Shunts 24
Temperature sensors 10
Tank level sensors 14
Inclinometer sensors 2
Smartphone application 1
Logger Capacity up to 3 month
