SHUNT SC501 500A

SKU:
S002
Price:
$332.15 inc. GST

Description

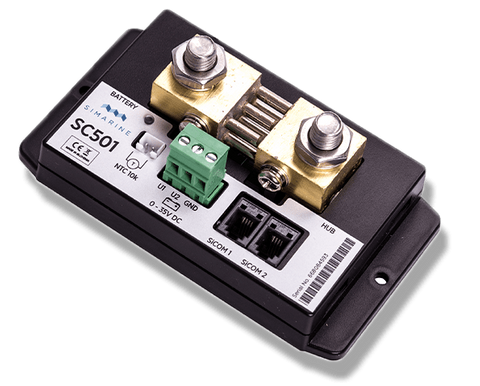

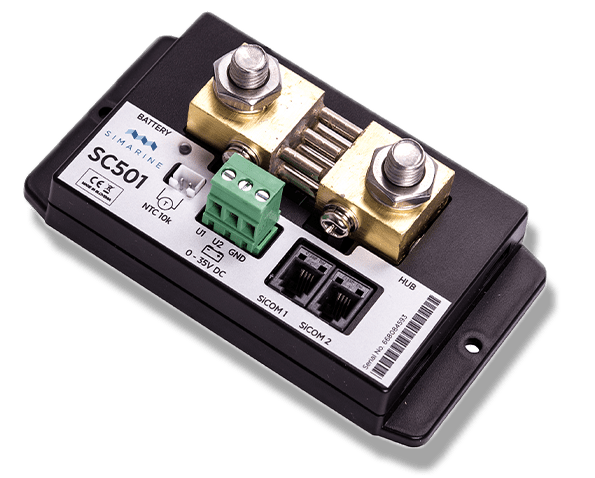

SC501 Shunt - 500A.

Innovative combination of shunt and tank level module. SC502T is a high precision combo shunt for PICO battery monitor with 2x voltage, 2x temperature and 1x current sensor up to 500A for up to 75V systems.

It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.


Operating
Voltage range 6 – 35 V
Temparature range -20 – +70 °C
Power consumption at 12 V
Operating 0.8 mA
Current measuring range
Per channel 0,1 – 320 A
Accuracy ± 0,6 %
Resolution 0,01 A
Sampling rate 100 ms
Maximal current
Continuous 300 A
Peak current (<1 min) 400 A
Peak current (<5 min) 700 A
Voltage drop at 300 A 50 mV
Maximal voltage on connections 35 V



Voltage inputs
Range 0 – 75 V
Resolution 1 mV
Accuracy ± 0,2 %
Sampling rate 100 ms
Temparature sensor – NTC 10k
Range -15 – +80 °C
Accuracy (-10 – 60 °C, 14 – 140 °F) ± 3,0%
Connectivity Up to
Batteries 1
Temparature sensors 1
Voltage sensors 2
SiCOM RJ9 Sockets 2
Installation and Dimension
Dimensions (length x width x depth) 118 x 40 x 52 mm
Battery Connection M 10 bolts
