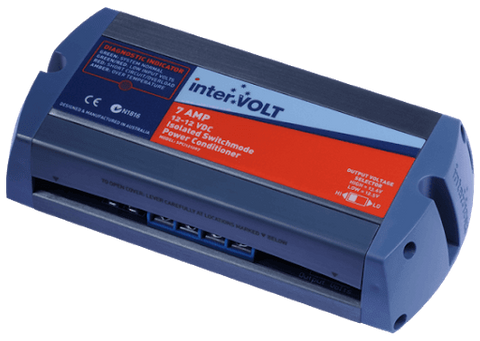

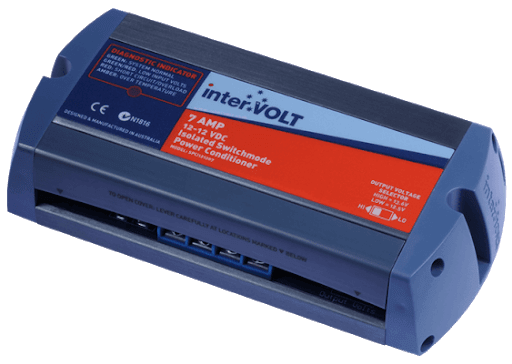

12-12VDC, 7AMP POWER CONDITIONER

SKU:
SPCi121207
Price:
$293.00 inc. GST

Description

interVOLT’s SPCi Power Conditioners Isolated Mini are condensed version of the tried and proven Maxi Series range packed with all the same features and benefits. They are in fact a converter, stabilizer, isolator and regulator all built into a single innovative package.

Like our SVCi converter range, these units feature galvanic isolation with no common connectivity between the input and the output whatsoever. This means peace-of-mind when connecting sensitive and often expensive, high-end electronic equipment to the output.

Housed in interVOLT’s new Mini Series enclosure which is not only stylish but compact, efficient and installer friendly.

Diagnostics
Unique to interVOLT, is the self diagnosing electronics. This design provides valuable feedback to installers and operators alike. An LED displays the system status and will indicate standby power, low input voltage, over temperature, overload and output short circuit.

Protection
interVOLT converters feature a range of devices designed to protect the electronics from various connection and application problems. The units are protected against short circuit, overloading and excessive temperature. An internal fuse protects the electronics in the event of component failure.

Performance
A key feature of the interVOLT mini series range is performance. Designed to operate in high ambient temperatures under constant load, the mini series delivers every time. Precise voltage regulation, superior noise filtering and excellent efficiency round off the performance package.

Conformity
interVOLT converters comply with Australian and European standards for electro-magnetic compatibility (EMC), displaying both the ‘C’ Tick and ‘CE’ marks. These approvals are supported by independent examination from a certified testing house. Our Declaration of Conformity is available upon request.

Isolation
A key feature of the new interVOLT SVCi mini series range is the input to output isolation. Galvanic isolation ensures there is no physical connectivity between the input and output terminals providing many benefits including elimination of line interference, greater protection, better regulation and improved performance.

Model SPCi121207
Continuous Load Rating @ 30°C
 7 Amps @ 13.6VDC
Peak Load Rating @ 30°C 10 Amps @ 13.6VDC
Length Overall 170mm (6.690”)
Width Overall 80mm  (3.150”)
Height Overall 40mm (1.575”)
Weight 418 grams (14.75 oz)
Input Voltage Range 10 – 16VDC
Output Voltage – Low Setting 12.5 VDC nominal
Output Voltage – High Setting 13.6 VDC nominal
Standby Current Draw <20mA
Power Conversion Efficiency @ 30°C
 Typically 93%
Output Ripple Less than 20mV Peak to Peak
Operating Temperature -25°C to + 45°C
Operating Humidity Ideally less than 90%
Enclosure Material Marine grade aluminium dye anodised
End Cap Material Injection moulded electrical grade ABS/PC plastic
Terminal Cover Material Extruded temperature resistant ABS
Diagnostic Indicator Tri-colour LED – monitoring input voltage, overload, short circuit and temperature.
Transient Voltage Protection Filtering – Purpose designed circuit
Overload/Short Circuit Protection Shutdown – Current sensing circuit (automatic reset)
Input Under Voltage Protection Shutdown – Voltage sensing circuit (automatic reset)
Over Temperature Protection Shutdown – Temperature sensing circuit (automatic reset)
Output Over Voltage Protection Internal Fuse – Zener crowbar circuit (not user serviceable)
Input Reverse Polarity Protection Internal Fuse – Diode bypass circuit (not user serviceable)
Termination Power – 6-32 UNC H/D screw terminal. Auxiliary – Euro terminal block
Conformity EMC – Australian AS/NZS CISPR 11. European EN55011.International CISPR 11 and IEC61204-3.
Certification EMC – Australian C Tick mark and European CE mark
