VRF PACK - NAC-3 + PRECISION 9 COMPASS
Description

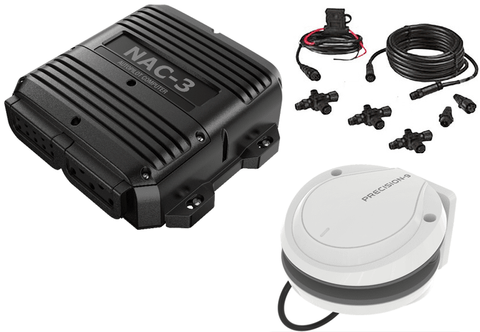

NAC-3 Autopilot Core Pack
This pack includes the Simrad NAC-3 autopilot computer, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network. This pack is recommended for outboard and sterndrive boats greater than 10 metres (35 feet) in length, and is suitable for use with high-current drive pumps including the Simrad RPU160 and RPU300, mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series, and solenoid valves.
Choose from a range of dedicated autopilot controllers, or control your autopilot from your existing Simrad multifunction display. Install extra autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant steering and autopilot control from anywhere on board.
Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a mechanical rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. VRF technology greatly simplifies autopilot installation, while delivering uncompromising Continuum steering performance. Industry-standard NMEA 2000® networking and NMEA 0183® input allow simple connectivity to sensors, autopilot controllers, and multifunction displays located anywhere on board. Auto-tuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you travel.
The Precision-9 Compass
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
- Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
- Heading and ROT calculated using sensor data from 9 axes of rotation and motion
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof. Best in class.
- Simple installation with a single NMEA 2000® connection
Environment
| Temperature, operation | 0 to +55°C |
| Temperature, storage | -32 to +70°C |
| Protection | IPx7 |
Mechanical
| Weight in Kg | 0.7kg, 1.6lbs |
| Dimmension Max size, mm (length x width x height) | 211x196x65.5mm, 8.31"x7,72"x2.58" |
| Mounting | Bulkhead |
| Construction | Plastic |
| Color | Black |
| Cable inlet | Grommet (Spare Incl) |
Power
| Local supply | 12/24 V DC +10-30% |
| NMEA 2000 Load Equivalent number (50mA) | 1 |
| Interface | |
| Reversible motor control of rudder | Max continious load 30A, peak 50A for 1s |
| On/off solenoid control of rudder | 12/24V DC, common, load range 10mA to 10A, off current <1mA |
| Engage output for bypass/clutch | 12/24V DC, min 10mA, max 3A |
| Rudder angle, frequency input | 15V, 1.4 to 5kHz, resol. 20Hz/° OR NMEA2000 |
| NFU port/stbd input and mode indicator output | External open/close contact, common ret, contact current max 30mA |
| Mode input | External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA |
| External alarm output for buzzer/relay | Max 100mA, voltage level as local supply |
Networking
| IEC 61162-1 input (NMEA0183 In) | 1 ch |
| IEC 61162-1 output (NMEA0183 Out) | 1 ch |
| IEC 61162-1 speed | 4.8 & 38.4 kbaud |
| NMEA2000 | Certified (pending) |
